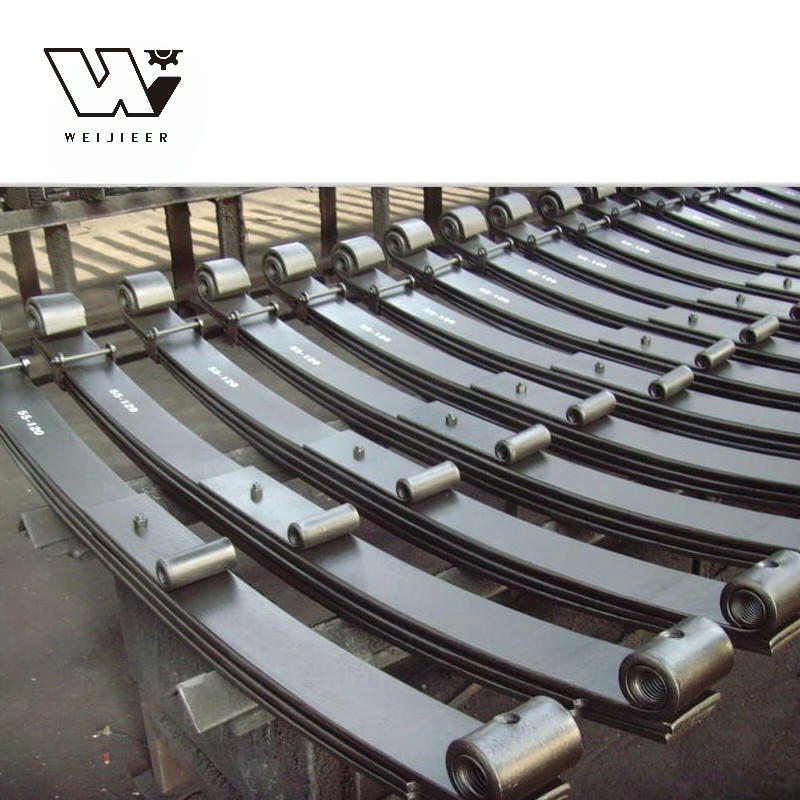

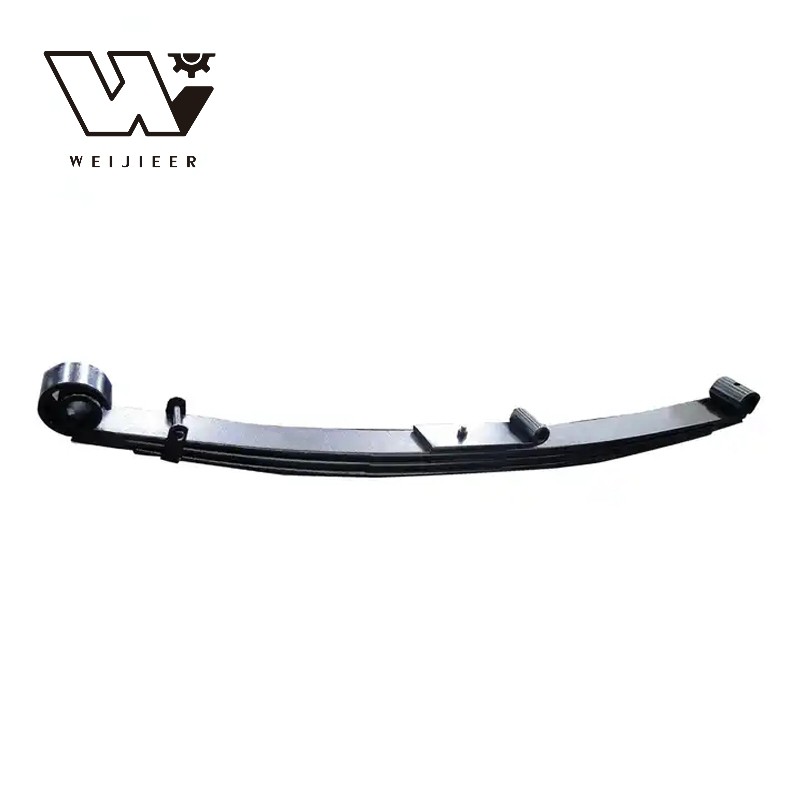

55-120 International Navistar Heavy Duty Front Leaf Spring

Description

• High-quality SUP9 spring steel

• Heavy-duty 3-leaf full-taper construction

• Shock-eye design with suspension bushings

• Reference load capacity: 6,350 lbs per spring assembly

• Designed for compatible International Navistar front suspensions

• Precision heat treatment and shot blasting

• Smooth and uniform electrophoretic coating

• OEM and ODM customization available

Product Specifications

Number of Leaves: 3

Width: 101.6 mm

Steel Thickness: 72.2 mm (Pack Thickness)

Eye to Eye Dimensions: To be confirmed (Reference A+B Length: 1,473.2 mm)

Type: Front Spring

Weight: Approx. 57.0 kg (Reference Unit Weight)

Compatible Vehicles: International Navistar 9100, 9200, 9300, 9400, 9700, 9800, ProStar, LoneStar and selected other models.

Reference OEM Numbers: 1653751C91, 1653751C92

Reference Load Capacity: 6,350 lbs (approximately 2,880 kg) per spring assembly.

Vehicle compatibility and technical specifications should be verified against the original suspension requirements before ordering.
